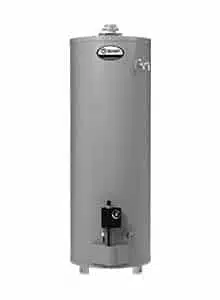

Residential Gas-Fired Water Heaters

  • Residential gas water heater
  • Promax® atmoshperic vent
  • 20 – 50 gallon capacity
  • Efficiencies up to 83%

  • Combination thermostat/eco with factory-preset pressure regulator.
  • Dynaclean™ diffuser dip tube reduces lime and sediment buildup and maximizes hot water output. Made from long-lasting PEX cross-linked polymer.
  • Coregard™ anode rod. Our anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rods.
  • Makes lighting the pilot fast and easy with one-hand push-button spark ignition.
  • Factory-installed heat trap nipples for faster installation.
  • Blue diamant® glass coating provides superior corrosion resistance compared to industry standard glass lining.
  • Our residential water heaters have a solid brass, tamper resistant, enhancedflow, ball type, drain valve.
  • Uses a standard female hose fitting that allows for fast and easy draining during maintenance.
  • Designed for easy operation, this valve includes an integral screwdriver slot that features a 1/4 turn (open/close) radius, which not only permits full straightthrough water flow but also a quick and positive shut off (exception: FCG-20 model will have a nylon drain valve).
  • Code compliace. complies with NOM-003-ENER-2011
  • Eco-Friendly non-CFC foam insulation, external heat traps and specially designed combustion chamber combine to produce a high Energy Efficiency for maximum savings on operating costs.
  • CSA Certified and ASME rated T&P valve
  • Maximum hydrostatic working pressure 150 PSI
  • Certified by ANCE NOM-011-SESH-2012 valve

Sample specification

The tank shall be gas-fired, foam insulated and suitable for operating wihtout electric power supply. Burner to operate on LPG / Natural gas. The heater will be equipped with mechanical gas valve and rugged atmospheric burner with pilot flame
