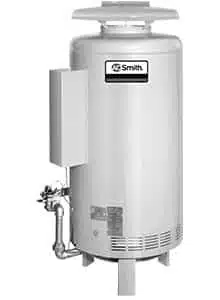

- Burkay hot water supply boiler
- 300,000 – 670,000 input rating BTU/hour
- All castings are made of bronze or brass
- All water tubes are made from copper
- Brazed joints or flare union construction make the boiler immune to the effects of thermal shock and thermal cycling
- A great boiler for domestic hot water supply
- The efficient copper coil combustion chamber is a heat exchanger formed from a two passage coil of tightly wound continuous copper tube
- Water circulating through this coil surrounds the main burner and captures the radiant heat
- A wrap of insulation on the outside of the coil retains the heat captured by the circulating water
- Directly above the coil and the main burner is a compact, horizontal, copper fin tube heat exchanger
- The flue gases must pass through this efficient heat exchanger before leaving the boiler
- This unique Burkay coil and heat exchanger design provide maximum heat transfer and proven field durability
- The patented Burkay burner uses primary air injection at up to 72 individual orifices plus secondary entrainment of air
- Approved for installation on combustible floors as shipped from factory
- Slow opening redundant gas valves ensure smooth light-off without flame roll-out or pilot outage
- Patented pump delay system that allows boiler and pump to run simultaneously
- but delays pump shut off at end of heating cycle to remove usable heat from the heat exchanger and reduce the scale forming tendencies of motionless hot water
- Proven pilot ignition system provides flame failure response in under one second
- Redundant high limit controls and gas valves assure safe shutoff in the event of overheating or flame failure
- Requires 120V 60Hz, maximum inlet gas pressure of 14” WC and activation of boiler by external temperature control
- ASME approved, hydrostatically tested and certified for 160 psi
- Ships with ASME 125 psi relief valve
- These models meet the thermal efficiency and standby loss requirements of the U. S. Department of Energy and current edition ASHRAE/IESNA 90.1.
Sample specification
Hot water supply boiler for domestic hot water purposes shall be model(s) no __________________ as manufactured by A. O. Smith or an approved equal. Boiler(s) shall be gas-fired, and design-certified by an ANSI approved/accredited independent rating laboratory, capable of supplying _____ gph at 100°F temperature rise equipped to burn __________ gas, with input rating of _____ BTU/hr. and bearing the ASME code symbol. Boiler(s) shall be up flow type having all nonferrous waterways, and employing a copper finned heat exchanger and a tightly wound copper coil combustion chamber with 160 psi working pressure rating. Boiler(s) shall be equipped with an electric gas valve of the step-opening type, an adjustable limit control which will break the electric circuit on temperature rise, intermittent ignition with one second shutdown in the event of pilot flame failure, a gas pressure regulator properly set for the gas to be supplied, and a coil limit switch for shut off in event of excessive water temperature, a certified draft diverter and a fully illustrated instruction manual. Certified for installation on combustible flooring. Outer jacket shall be of baked enamel finish. The coil, heat exchanger and burner shall have a five year limited warranty as outlined in the written warranty.
