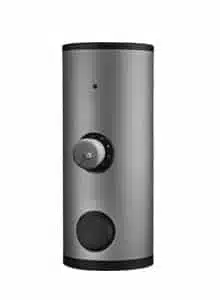

- Indirect calorifier solar
- 78 – 154 kW output
- 385 – 1007 liter capacity
- Single-wall spiral heat exchanger
- PermaGlas Ultra Coat second-generation glass coating technology prevents corrosion
- Insulated ring base: 70-100mm NEODUL insulation with ABS cover, compliant with Ecodesign regulations
- Insulated access cover for comprehensive waterside maintenance
- Replaceable magnesium anode
- Temperature and pressure valve with stainless steel spring set to 95ยฐC and a maximum water pressure of (10 bar) 1000 kPa
- Options:
–ย Analogue temperature gauge (0-120ยฐC)
– Electric element heat packs (max 2 x 7,5 kW) flange mounted
Sample specification
The tanks shall be A. O. Smith ITE series industrial Indirect hot water storage calorifier, model number _ITE_xxxx (400-1000L) or an approved equal. The tank shall be for vertical installation. Vessel shall be constructed to European Pressure Directive for minimum 10 bar working pressure. Vessel shall be glass-lined, have sacrificial magnesium anode for additional corrosion protection. Entire vessel shall be insulated with 70-100 MM NEODUL insulation with ABS cladding. Heat loss will meet ErP standards. A combined temperature and pressure relieve valve will be factory supplied. A factory installed boiler water/solar heat exchanger will meet or exceed the heating requirement. The heat exchanger will be able to handle up to 110 ยฐC heating fluid (boiler water or glycol). The tank will have the option to install one or two back-up electric element with automatic temperature control and high temperature cut-off.
